Plug and party. Shine in consistency.
No need of software control, the board lighting can be easily synced with any other ARGB-supported devices with just a single cable






Palit ONE TWO SYNC - Installation Guide





This ARGB strip supports 5V only. Please follow below steps for installation.If any help needed, please contact our technical support team: support@palit.com

STEP-01

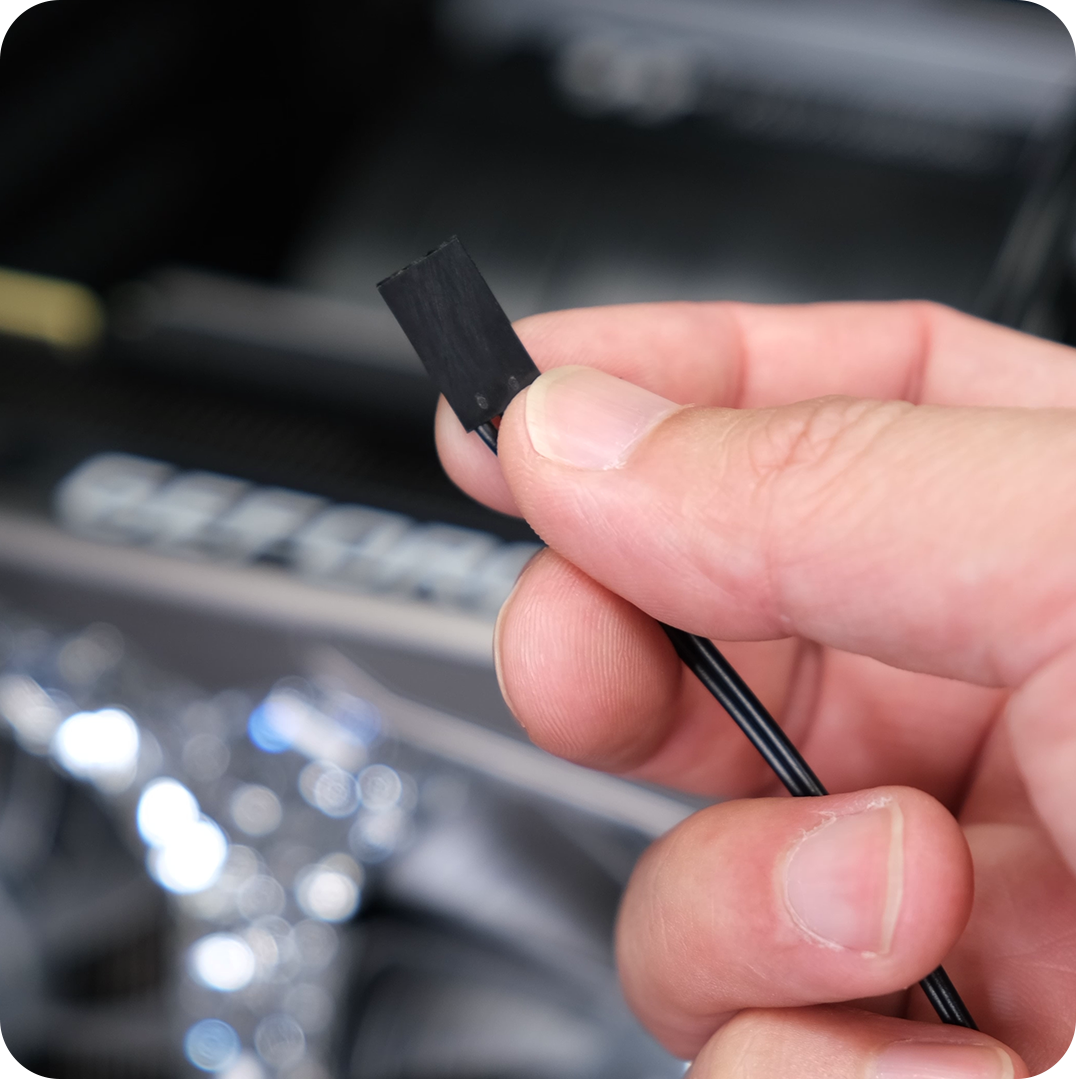

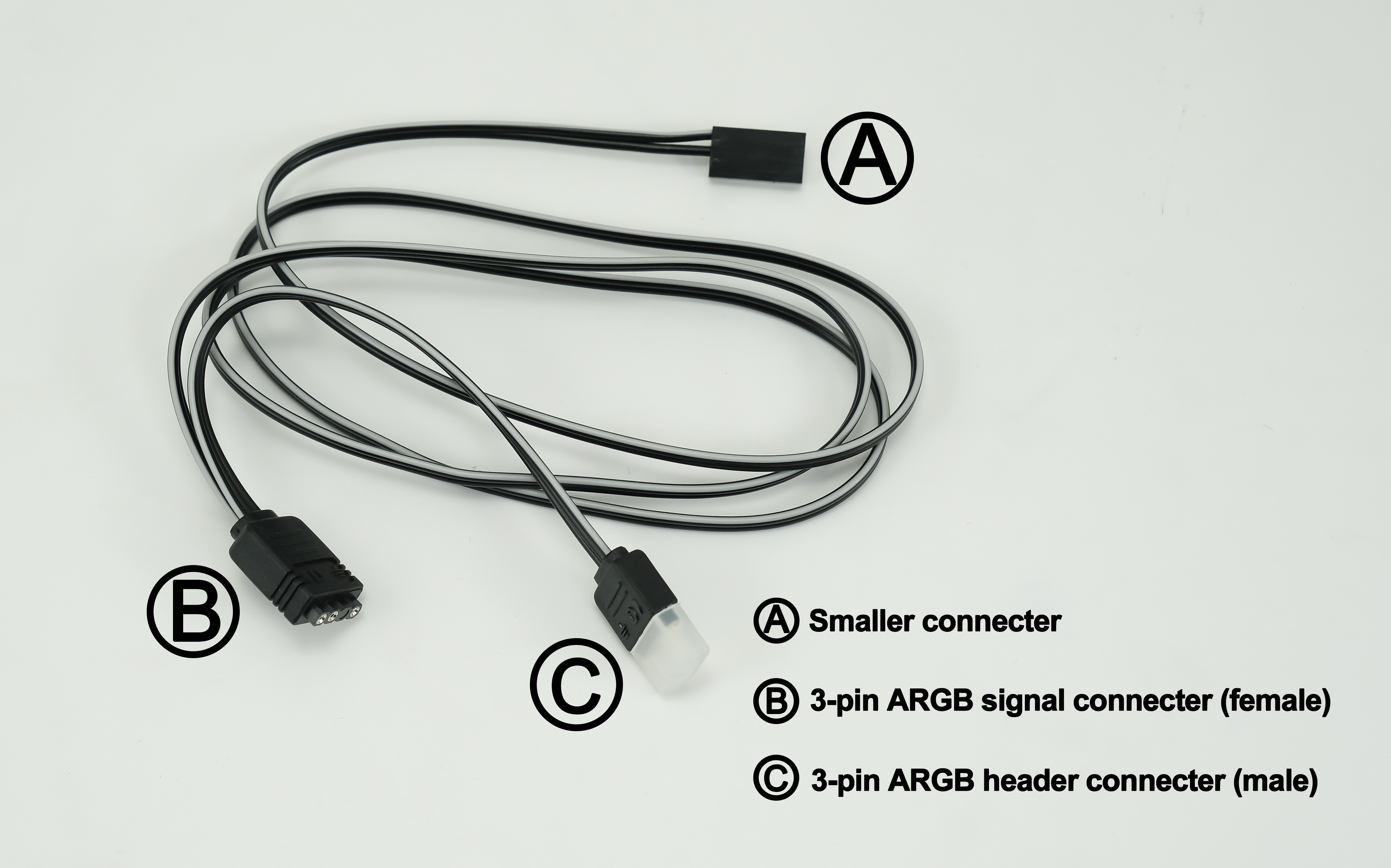

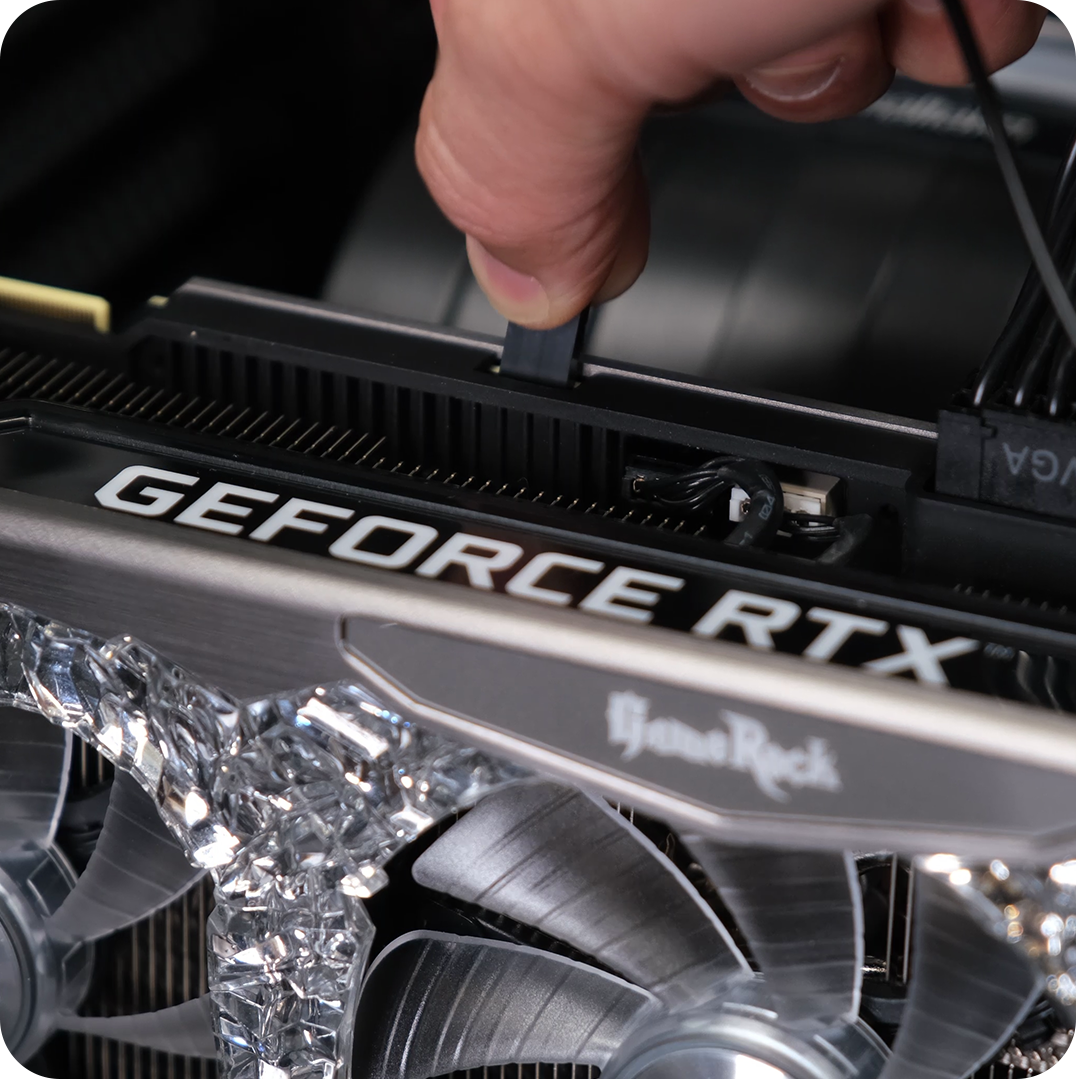

Connect the smaller end Ⓐ to GPU’s connector. The connector is non-directional, so you don’t need to worry about damaging the card with wrong connection.










STEP-02

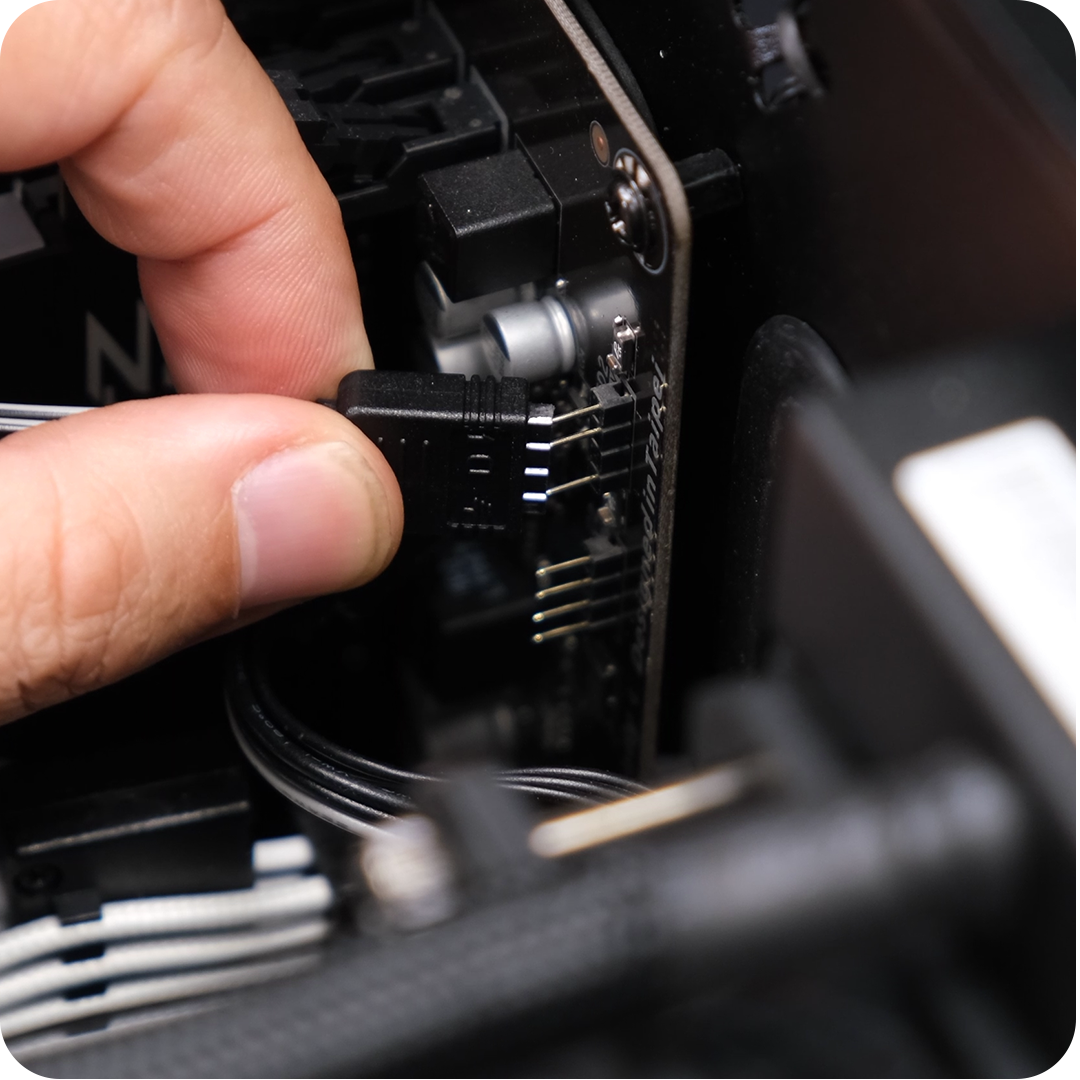

Connect Ⓑ (female) connector to the motherboard or other ARGB controller.
NOTE: The ARGB strip supports 5V only (from the motherboard header or ARGB controller.) Incorrect connection may lead to damage of the strip.






STEP-03

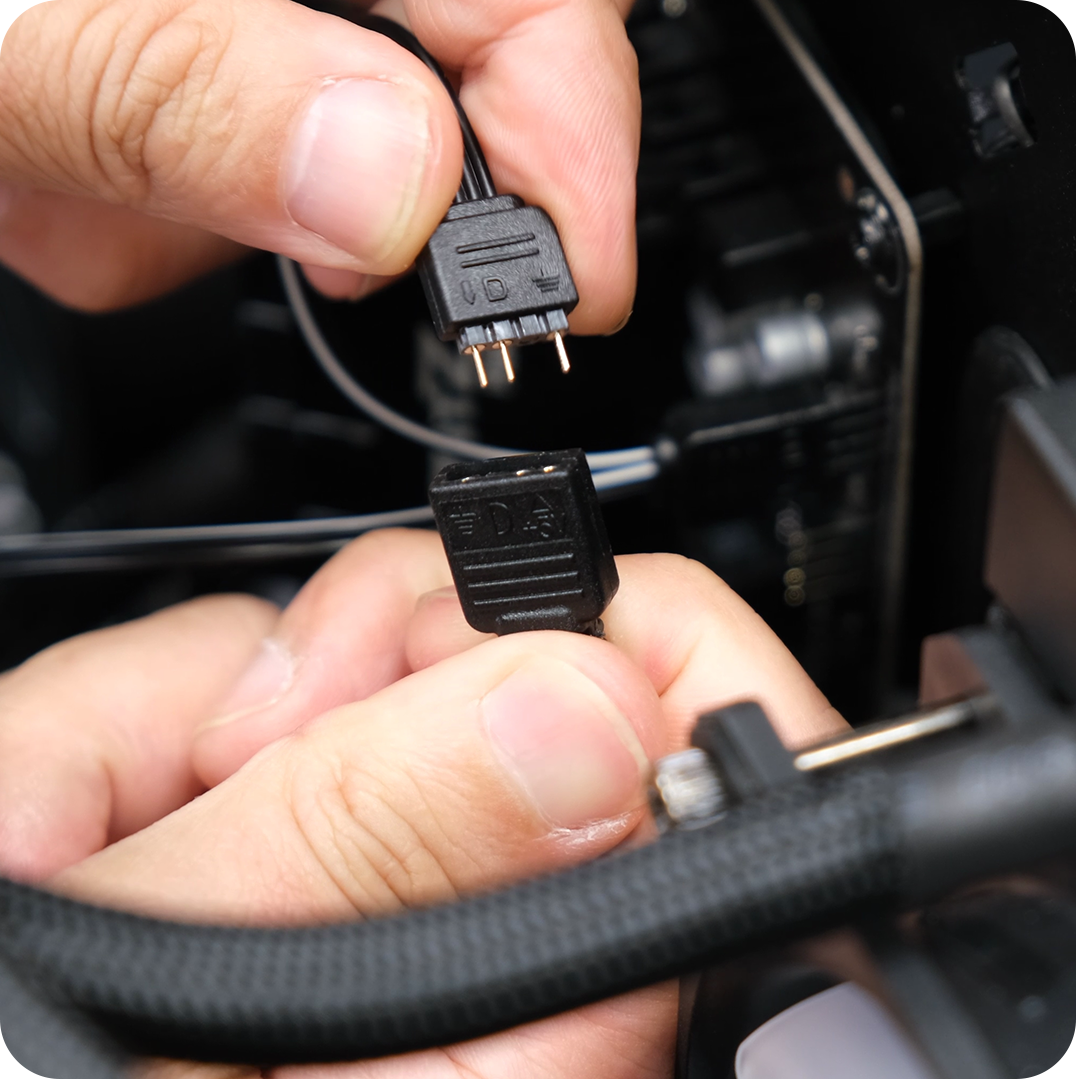

If you have other ARGB-supported devices, you can connect Ⓒ (male) connector to the ARGB strip.

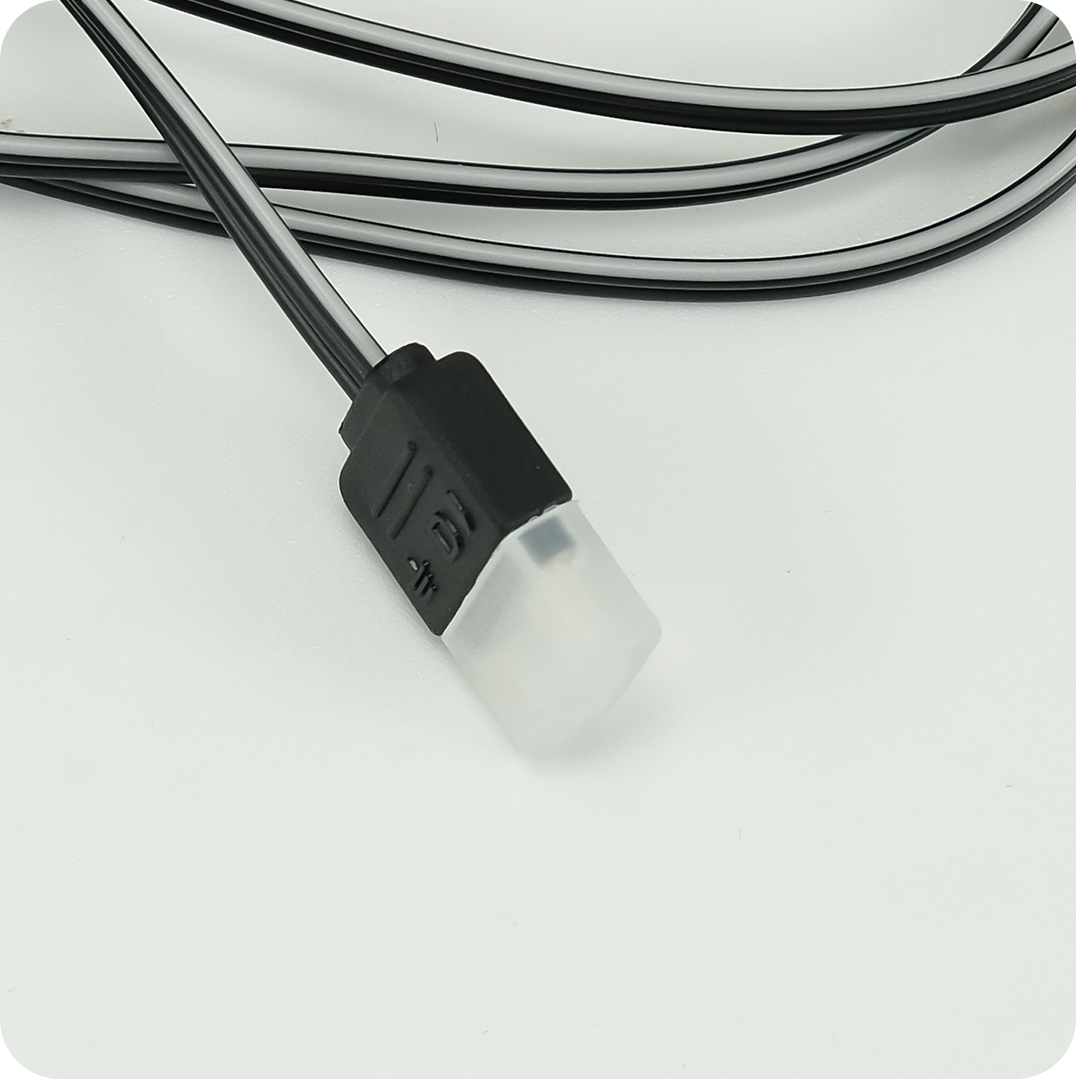

NOTE: If you are not using the Ⓒ (male) connector, please do NOT remove the protection cap in order to prevent the strip from damage.









Palit ONE TWO SYNC - Supported Models
GeForce RTX 4090 GameRock OC
GeForce RTX 4090
24GB/384bit
GDDR6X
HDMI 2.1 / DisplayPort
GeForce RTX 4090 GameRock
GeForce RTX 4090
24GB/384bit
GDDR6X
HDMI 2.1 / DisplayPort
GeForce RTX 4080 GameRock OC
GeForce RTX 4080
16GB/256bit
GDDR6X
HDMI 2.1 / DisplayPort
GeForce RTX 4080 GameRock
GeForce RTX 4080
16GB/256bit
GDDR6X
HDMI 2.1 / DisplayPort
